Morphew, Bjorkman and co-workers have developed a method for silver enhancement of Nanogold particles that works during freeze substitution in organic solvents at low temperature, based on in vitro tests of reagents and conditions. This method was applied to an in vivo system: Nanogold® was used to track the internalization of immunoglobulin by neonatal murine intestinal epithelium, a specific example of receptor-mediated membrane traffic. Their method and results are described in a recent paper in the Journal of Microscopy.

The four components necessary for silver enhancement of small gold were cooled, and mixed by adding two parts of silver nitrate, two parts of hydroquinone, one part of citric acid and one part of sucrose. The mixture was then cooled to 50°C in the dark and added to each 1.5 mL sample vial. After 12 hours at 50°C, the samples were warmed to 30°C over 6 hours, rinsed 3 times in cold acetone, post-fixed with 0.5% glutaraldehyde containing 0.1% uranyl acetate, then warmed to room temperature over 612 hours and rinsed in acetone.

Samples were infiltrated with epoxy resin, and tissue pieces flat-embedded between two treated microscope slides. After polymerization of the resin, small pieces of embedded tissue were excised and remounted onto blank epoxy stubs. Ribbons of 300-nm sections were collected on Formvar-coated copper slot grids and post-stained with uranyl acetate and Reynolds lead citrate. Sections were imaged by transmission electron microscopy at 300 kV. Areas containing the intestinal lumen were imaged through serial tilts 60?, and tomographic reconstructions computed.

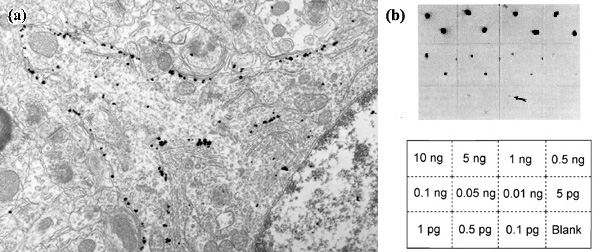

In the preliminary blotting experiments at 4°C, visible dark spots developed in one hour, but at lower temperatures (-20 or -50°C) longer development times of 8-12 hours were required. TEM examination of enhanced Nanogold on grids showed a size range of 4 to 13 nm for the enlarged particles, and similar enhancement was observed in the Ptk1 cells, showing penetration and enhancement even of interior structures. Longer times or higher temperatures produced larger particles and background autoucleation. In the in vivo experiments, similar penetration and enhancement was observed, although the particle size on average was smaller than that found in the in vitro experiments; the enlarged particles were between 3 and 8 nm in size. Sample preservation appears excellent, making this a potentially useful method for high-quality electron microscopic labeling.

Reference:

• Morphew, M.; He, W.; Bjorkman, P. J., and McIntosh, J. R.: Silver enhancement of Nanogold particles during freeze substitution for electron microscopy. J. Microsc., 230, 263-267 (2008).
  • Abstract (courtesy of Blackwell Publishing).

More information:

• Catalog information: Nanogold labeling reagents
• Catalog information: Nanogold conjugates
• Non-functional Nanogold: product information and instructions
• Nanogold-antibodies: product information and instructions
• Technical help FAQ: Nanogold conjugates
• Nanogold references, sorted by application

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Silver Enhancement: Choosing and Using - HQ or LI Silver

First, the differences between HQ Silver and LI Silver...

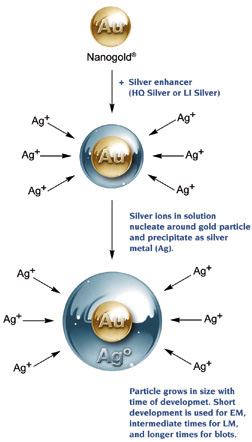

HQ Silver is formulated for the most uniform development, with the least perturbation of specimen ultrastructure. It contains a protective colloid, in order to control the rate of diffusion of the reactive species; this ensures that particles are enlarged uniformly, so that the enlarged particles have the least possible variation in size. It also permits the use of a near-neutral pH; this gives fast development, ensuring that the highest proportion of particles is developed; and because this reagent also has low ionic strength, it provides excellent ultrastructural preservation. This makes it ideal for electron microscopy applications where labeling density and size uniformity are critical, especially quantitative labeling applications, and also for delicate specimens with low fixation or sensitivity towards pH or ionic strength. However, this reagent is sensitive to sunlight or direct light, and therefore should be used in a darkroom with a safelight, or in diffuse light; for example, with the blinds closed or curtains drawn enough to leave sufficient light to see what you are doing.

LI Silver is formulated to give the most complete and specific development with the greatest degree of particle enlargement: it is formulated with components designed to minimize non-specific silver deposition or interaction with other features within the specimen. It requires a longer time than HQ Silver to achieve full development, and it is light insensitive, so it may be used in a fully lighted laboratory. It is intended for the highest staining and detection sensitivity in optical applications, including light microscopy, immunoblotting and gel staining. Because it develops more slowly and is light insensitive, it is ideally suited to applications where monitoring is needed; you can view the progress of the silver enhancement either by eye or in the light microscope, then stop when staining reaches the desired point either by rinsing with water, or treatment with freshly prepared 1 % sodium thiosulfate solution.

The key features and differences between these to reagents are illustrated and summarized below:

But...we also offer gold enhancement, an alternative process in which gold, rather than silver, is deposited onto gold particles. The different properties and reactivity of gold, and its stability towards physiological ions such as halides and phosphates, means that gold enhancement has advantages for several applications. If you are planning to use the following techniques, you should consider using GoldEnhance

• Immunogold labeling in systems requiring physiological buffers that precipitate silver ions.

• Scanning electron microscopy (SEM) with backscatter detection. Gold has improved backscatter detection compared with silver, and therefore gold enhanced particles are better visualized by this method.

• Procedures where osmium tetroxide treatment is required and etching of silver-enhanced gold by osmium has been a problem; unlike silver, gold is not etched by osmium.

• Enhancement of gold-labeled specimens, such as cultured cells, on metal substrates. While silver can be deposited onto the metal substrates, gold usually is not.

• Some light microscopic applications, particularly in situ hybridization (ISH). Gold enhancement, used to visualize gold labeling as an ISH detection method, frequently produces lower background than silver enhancement, resulting in a cleaner or more specific signal.

Both silver and gold enhancement also work well with other immunogold reagents, including colloidal gold particles from other manufacturers. However, please note that both methods require the presence of gold nanoparticles. You cannot use silver enhancement on its own as a replacement for the formaldehyde-based "silver staining" methods: the chemistry of the process is different. In the formaldehyde silver staining system, the silver is deposited directly onto the biological molecule in question, and all the molecules on the gel are stained and visualized. In silver enhancement, the catalyst and nucleating center for silver deposition is an immunogold particle, and therefore silver enhancement will visualize only molecules linked to gold nanoparticle labels.

Please let us know if you need advice or assistance on selecting the best reagent for your application. We will be glad to advise.

More information:

• Silver enhancers: catalog information
• HQ Silver: product and technical information
• LI Silver: product and technical information
• Gold enhancement: general and catalog information
• Technical help: silver and gold enhancement
• References sorted by application: silver enhancement
• References sorted by application: gold enhancement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quantitating Heavy Metal Stains: STEM Tomography

The methods for determining the relative numbers of light and heavy atoms were tested on cells of the smallest known eukaryote, Ostreococcus tauri. O. tauri is a plant cell of diameter 12 µm. Specimens were prepared by immersion in a cryopreservative solution consisting of 15% sucrose, then freezing the mixture in a high-pressure freezing machine. The frozen blocks were processed at low temperature in a Leica EM-AFS freeze-substitution system using a solution of acetone containing 1.0% osmium tetroxide. After freeze-substitution for 3 days, the specimens were gradually warmed to room temperature and embedded in EponAraldite by graded exchange of the acetone. Specimens were polymerized in 100% resin by heating to 60°C for two days, sectioned to a nominal thickness of 3040 nm with a Leica Ultracut E ultramicrotome, and mounted on 300 mesh grids. Some of the sections were stained with lead citrate for 5 minutes, followed by staining with uranyl acetate for another 5 minutes; after each staining step, the sections were washed nine times in three 50 ml volumes of de-ionized water.

STEM images were acquired with a transmission electron microscope (FEI, Hillsboro, OR, USA) operating at an acceleration voltage of 300 kV and equipped with a field-emission gun. This microscope is fitted with a Model 3000 in-column HAADF detector (Fischione, Export, PA, USA) situated after the projection-lens system and above the viewing screen. The HAADF detector incorporates a single crystal yttrium aluminum perovskite scintillator optically coupled to a photomultiplier tube. Selected specimen regions from both unstained and stained osmium-fixed O. tauri were first pre-exposed to a broad electron beam in TEM mode in order to stabilize shrinkage of the plastic section. STEM images were then collected from these regions with an electron dose per pixel of 2.5 x 10⁴ e/nm2. The image dimensions were 2048 X 2048 pixels with a pixel size 0.87 nm. The convergence semi-angle of the illumination was 12 mrad. For each selected specimen region two STEM images were acquired, one with an ADF detector inner semiangle of 16 mrad, and another with a detector inner semiangle of 36 mrad. The outer semi-angle of the ADF detector was five times the inner angle. Control over the collection angles was achieved by varying the magnification of the diffraction pattern (camera length).

The same specimen regions of O. tauri selected for 2D STEM imaging were also used to acquire STEM tomographic tilt series. 10 nm fiducial markers were deposited on both sides of the sections before image collection. Tilt series were acquired from -60° to +60° with steps of 2°, with a pixel size of 0.87 nm, with an integral electron dose per pixel of 4 X 10⁴ e/nm², and with a fixed ADF detector inner semi-angle of 16 mrad. Data were collected using FEI STEM tomography software. For 3D reconstruction, tilt series were first aligned with the IMOD computer program using gold fiducial markers and reconstructed by weighted back-projection. The reconstructed tomograms were used to determine the thickness of the selected specimen regions. Finally, an additional STEM tomographic tilt series was acquired from a stained osmium-fixed O. tauri cell. The parameters used to acquire the tomographic tilt series were identical to those above, except the pixel size of the images was 0.43 nm and the integral dose was 1.7 X 10⁵ e/nm². Alignment of the tilt series was done using fiducial markers in IMOD and tomographic reconstruction was performed using the simultaneous iterative reconstruction tomography (SIRT) algorithm used previously. After alignment, but before reconstruction, the fiducial markers were removed from each tilt image to eliminate ghost streaks in the tomogram. The SIRT-reconstructed tomogram was then used to estimate the distribution of heavy metal stain atoms in 3D.

Testing the method on a specimen of 20 nm carbon film upon which had been deposited 1.4 nm Nanogold, the method provided a value of 63 ± 13 for the number of gold atoms in a Nanogold particle - consistent with other observations on similar clusters. The authors then used their approach to quantitate osmium atoms in osmium stained specimens. In sectioned cells that have been stained only with osmium tetroxide, they found an average of only 1.2 ± 0.1 Os atom per nm³, corresponding to an atomic ratio of Os : C atoms of approximately 0.02. A this density of osmium, the small heavy atom clusters of Undecagold and Nanogold can be detected, and this indicates that STEM tomography is capable of visualizing these labels in lightly stained specimens.

Reference:

• Sousa, A. A, Hohmann-Marriott, M, Aronova, M. A, Zhang, G, Leapman, R. D.: Determination of quantitative distributions of heavy-metal stain in biological specimens by annular dark-field STEM. J. Struct. Biol., 162, 14-28 (2008).
  • Abstract (courtesy of Science Direct).

More information:

• Technical help - Immunoelectron microscopy
• Nanogold labeling reagents: general and catalog information
• Technical help - Nanogold labeling reagents
• References - Nanogold STEM labeling

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Nanogold®-Fab' and GoldEnhance for Precision Labeling

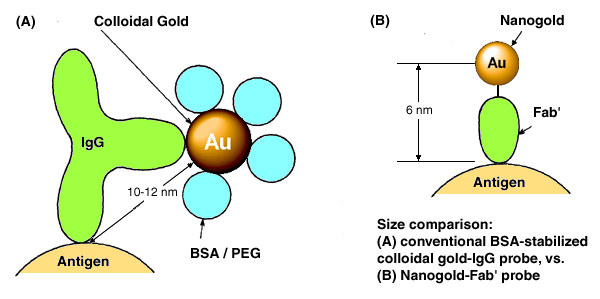

• High specimen penetration.
